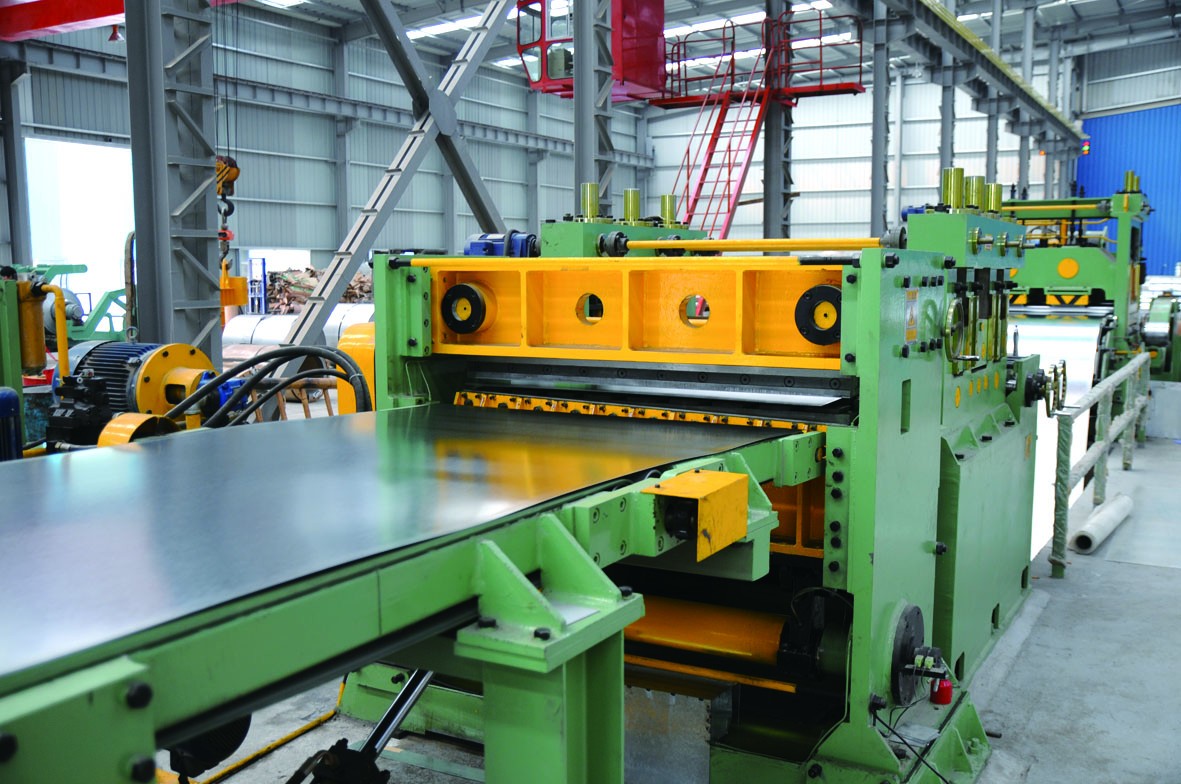

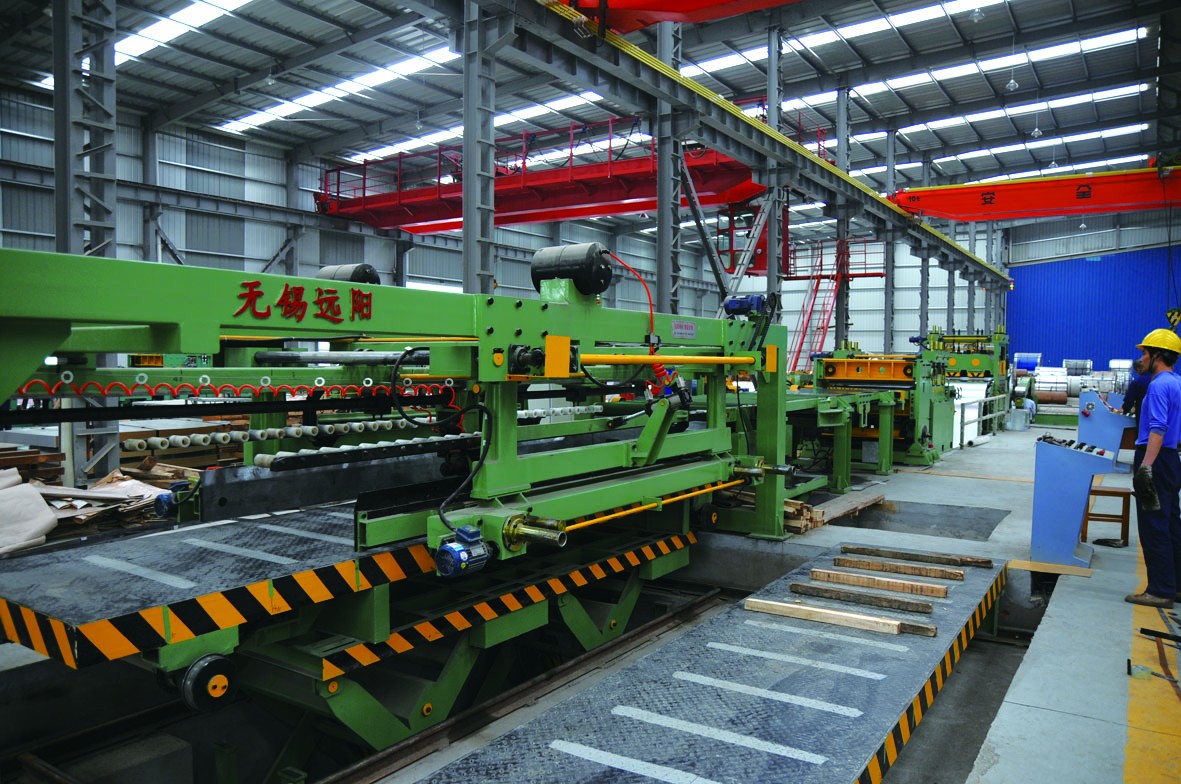

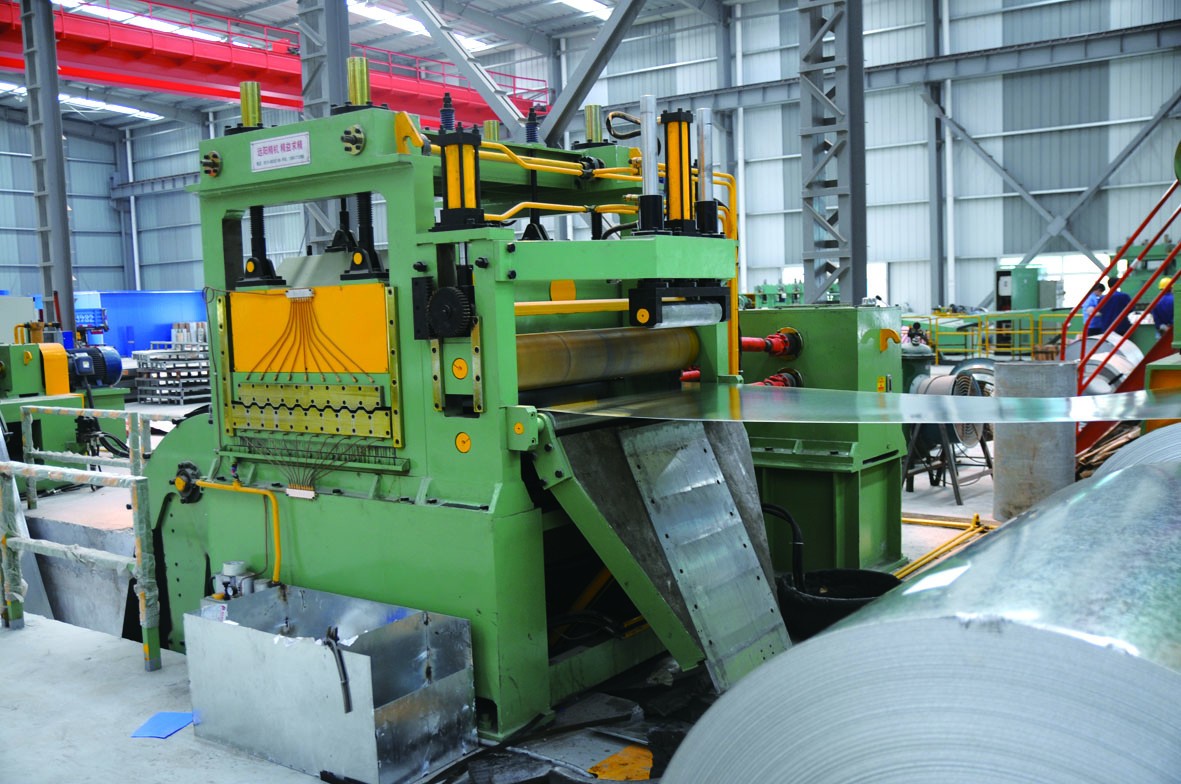

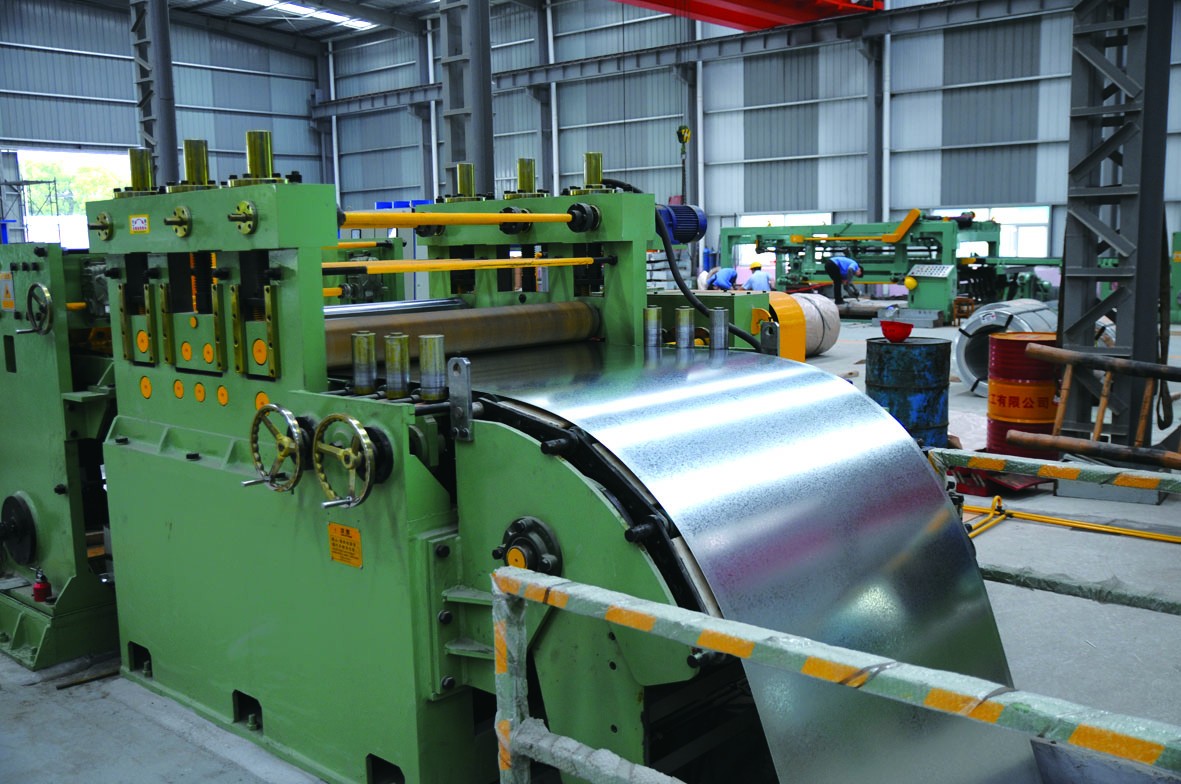

ZPY Automatic High-Speed Sheet Cut-to-length Machine Line
Specifications
| Model | JPY0.3-2.0×800 | JPY0.3-2.0×1250（1600） | JPY0.5-3.0×1250(1600/2000) |
| Coil Material | δs≤230N/mm2,Cold-rolled Coil,Stainless Steel Coil,Galvanized Coil |
| Coil Thickness | 0.3～2.0mm | 0.3～2.0mm | 0.5～3.0mm |
| Coil Width | 300～800mm | 800～1250（1600）mm | 800～1250mm(1600/2000mm) |
| Coil Weight | ≤10T | ≤20T（25T） | ≤20T(25T/30T) |
| Coil I.D | ф508mm | ф508mm | ф508mm(ф610mm) |
| Coil O.D | ≤ф1800mm | ≤ф1800mm | ≤ф1800mm |
| Cutting Range | 200～3000mm | 300～4000mm | 400～4000mm |
| Cutting Accuracy | ±0.5mm | ±0.5mm | ±0.5mm |
| Line Speed | 0～60m/min | 0～60m/min | 0～60m/min |
| Electrical Control System | PLC Automatic control |
